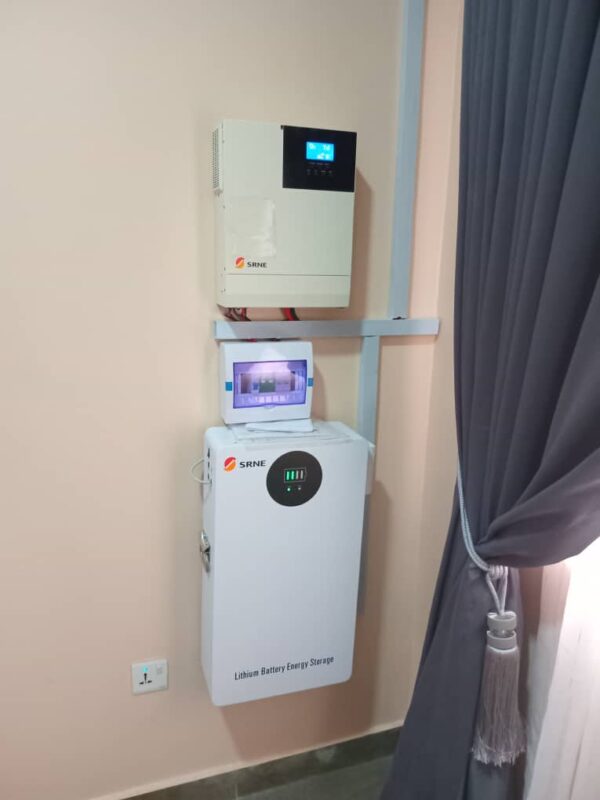

3.3KVA Hybrid Inverter + 5KWH Lithium Battery

Product Description

INVERTER

AC Mode
• Rated Input Voltage: 220VAC / 230VAC
• Input Voltage Range: 170VAC to 280VAC; 90VAC to 280VAC
• Frequency: 50Hz / 60Hz (Auto detection)
• Overload / Short Circuit Protection: Circuit Breaker
• Efficiency: >95%
• Conversion Time: 10ms
• Maximum Bypass Overload Current: 30A

Inverter Mode
• Output Voltage Waveform: Pure Sine Wave
• Rated Output Power: 3300W
• Power Factor: 1
• Rated Output Voltage: 230VAC
• Output Frequency: 50Hz / 60Hz
• Efficiency: >92%
• Loaded Motor Capability: 2HP
• Output Short Circuit Protection: Circuit Breaker
• Bypass Breaker: 30A
• Rated Battery Input Voltage: 24VDC (Min Start Voltage of 22VDC)
• Battery Voltage Range: 20VDC – 33VDC

AC Charging
• Battery Type: Lead Acid / Lithium
• Maximum Charging Current: 80A
• Charging Voltage Range: 20VDC to 33VDC
• Short Circuit Protection: Circuit Breaker and Blown Fuse
• Circuit Breaker: 30A

PV Charging
• Maximum PV Open Circuit Voltage: 500VDC
• PV Operating Voltage Range: 120VDC to 500VDC
• MPPT Voltage Range: 120VDC to 450VDC
• Maximum Input PV Power: 4000W
• PV Charging Current Range: 0A to 80A (Adjustable)
• Charging Short Circuit Protection: Blown Fuse
• Wiring Protection: Reverse Polarity Protection

Environment Limit
• Ingress Protection: IP20
• Operating Temperature Range: -15°C to +55°C
• Humidity Range: 5% to 95% (Conformal Coating Protection)
• Cooling: Forced Air Cooling, Variable Speed Fan (<60dB)
• Communication: USB / CAN / RS485(WIFI/GPRS) / Dry Node Control

5KWH Lithium Battery

MAIN INFO
Rated Voltage 51.2V
Rated Capacity 100Ah
Battery Power 5.12kWh
Battery Type LFP
Cycling Lifespan 6000 (80%DOD,0.5C,25°C)
Lifetime 20 years
Max. Parallel Capacity 16 units
CHARGE&DISCHRAGE
Max. Charging Voltage 57.6V
Over Discharging Voltage 44.8V
Max. Charging Current 100A (1C)
Peak Charging Current 110A (1.1C,3s)
Max. Discharging Current 100A (1C)
Peak Discharging Current 110A (1.1C,3s)
GENERAL
Weight 47kg （103.6lb）
Dimension（L*W*H） 460*100*725mm （1.5*0.32*2.37ft）
Communication CAN / RS485 / USB / WiFi / Bluetooth ✓
Storage Condition 6 months@25°C/77°F，3 months@35°C/95°F，1 month@45°C/113°F
Charging Temp. Range 0～45℃
Discharging Temp. Range -10～45℃
Cooling Method Neutral Cooling
Protection Grade IP30
